t-Boc-N-Amido-PEG10-propargyl

N-(Propargyl-PEG2)-DBCO-PEG3-acid facilitates the creation of triazole linkages with azide-containing compounds using Click Chemistry. The carboxylic group can react with amine-containing entities using coupling agents like HATU for further conjugation.

N-(Propargyl-PEG2)-DBCO-PEG3-acid facilitates the creation of triazole linkages with azide-containing compounds using Click Chemistry. The carboxylic group can react with amine-containing entities using coupling agents like HATU for further conjugation.

Introduction

Magen’s HiPure columns are prepared by high quality glass fiber filter membrane as raw materials through membrane cutting, membrane release, ring release, ring pressing, gland, weighing and other processes. HiPure nucleic acid adsorption columns have the characteristics of long-term stability and high binding capacity. Experiments show that the highest binding capacity and binding efficiency of HiPure nucleic acid adsorption columns are basically unchanged when stored at room temperature for 4 years.

The series of nucleic acid columns produced by Magen Biotech are based on carefully selected imported glass fiber membranes (GF/B, GF/D, GF/F). Columns production processes such as polypropylene injection molding materials, injection molding process, and downstream membrane packing and compression rings are strictly controlled. This is to ensure that the column has extremely high adsorption capacity and long-term stability. Compared with conventional products on the market, Magen’s columns are with varieties, and binding rate will not change when stored at room temperature for 4 years.

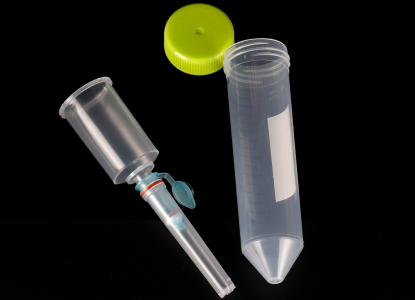

C13114 HiPure cfDNA Mini Column Set I (Centrifuge Method)

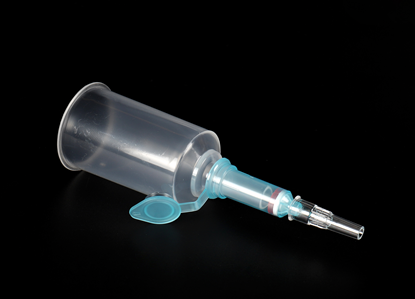

C13115 HiPure cfDNA Column Set Ⅱ (Vacuum Method)

Details

Specifications

Features	Specifications
Recommended application	Circulating or viral nucleic acid isolation from large volumes of cell free samples (1-5ml)
Preservation conditions	Room temperature
Stability	Up to 4 years
Filter membrane	High quality glass fiber filter GF/F, 4 layers (3 x GF/F, 1 x GF/B)
Membrane aperture	3 x 0.7μm, 1 x 1.0μm
Maximum binding yield of plasmid	30 μg
Maximum yield of alcohol mediated Binding	200 μg
Single liquid carrying capacity of column	800 μl
Minimum elution volume	30 μl
Withstand centrifugal force	16,000 x g
Centrifuge	Small high speed centrifuge (2ml)

Adsorption Mechanism

Based on the negatively charged DNA skeleton, it has a high affinity for positively charged glass fibers. In high salt and ethanol solutions, DNA/RNA binds to glass fiber and interacts with hydrophilic matrix on silica through hydrogen bond. DNA/RNA is tightly bound. All pollutants can be removed by washing solution. At high salt concentration, nucleic acids selectively bind to silica gel membrane, while other pollutants, mainly proteins, are removed by membrane washing.

Ordering information

CAT.No.	Product Name	Package
C13113	HiPure cfDNA Mini Column (3 x GF/F, 1 x GF/B)	100/Bag
C13114	HiPure cfDNA Mini Column (3 x GF/F, 1 x GF/B)with 50ml Centrifuge Tube, Extender Tube, Collection Tube, Collection Tube Ⅲ	100/Pack
C13115	HiPure cfDNA Mini Column (3 x GF/F, 1 x GF/B)with Collection Tubes, Extender Tube, Vac-Connector	100/Pack
C13301	Vac connector	100/Bag
C13302	Extender Tube	50/Bag

Purchase Guide

Item No.	Product Name	Membrane type/number of layers	Collection tubes	Plasmid DNA binding capacity (Physical adsorption)	gDNA/RNA binding capacity (Alcohol-mediated adsorption)	Minimum Elution volume	Liquid volume capacity
C13010	HiPure DNA Nano Column	2 layers GF/F	2ml without cap	5μg	20μg	10μl	700μl
C13011	HiPure DNA Micro Column	3 layers GF/F	2ml without cap	10μg	50μg	15μl	700μl
C13100	HiPure DNA Mini Column I	2 layers GF/B	2ml without cap	15μg	100μg	30μl	700μl
C13110	HiPure DNA Mini Column II	4 layers GF/B	2ml without cap	35μg	200μg	50μl	800μl
C13111	HiPure RNA Mini Column	3 layers GF/B	2ml without cap	30μg	200μg	30μl	800μl
C13112	HiPure Viral Mini Column	3 layers GF/F	2ml without cap	30μg	200μg	30μl	800μl
C13113	HiPure CFDNA Mini Column	3 layers GF/F,1 layer GF/B	2ml without cap	30μg	200μg	30μl	800μl
C13120	HiPure DNA Midi Column	4 layers GF/B	15ml Centrifuge tube	125μg	1mg	500μl	4ml
C13121	HiPure DNA Midi Column III	8 layers GF/B	15ml Centrifuge tube	250μg	1mg	500μl	4ml
C13122	HiPure DNA Maxi Column	4 layers GF/B	50ml Centrifuge tube	500μg	5mg	1000μl	20ml
C13123	HiPure DNA Maxi Column III	8 layers GF/B	50ml Centrifuge tube	1mg	5mg	1000μl	20ml
C13124	HiPure DNA Maxi Column C	8 layers GF/B	50ml high speed Centrifuge tube	1mg	5mg	700μl	12ml
C13130	HiPure DNA Plate	2 layers GF/F	1.6ml Plate	30μg	100μg	80μl	900μl
C13131	HiPure gDNA Plate	2 layers GF/B	1.6ml Plate	30μg	100μg	80μl	900μl

Note: GF/B pore size is for 1.0μM glass fiber membrane; GF/F pore size is for 0.7μm glass fiber membrane.

Magen’s HiPure columns are prepared by high quality glass fiber filter membrane as raw materials through membrane cutting, membrane release, ring release, ring pressing, gland, weighing and other processes. HiPure nucleic acid adsorption columns have the characteristics of long-term stability and high binding capacity. Experiments show that the highest binding capacity and binding efficiency of HiPure nucleic acid adsorption columns are basically unchanged when stored at room temperature for 4 years.

Overview

• Isolate all sizes of circulating and exosomal RNA, including microRNA
• Versatile plasma/serum input ranges
• No phenol extractions
• No carrier RNA
• Bind and elute all RNA irrespective of size or GC content, without bias
• Concentrate circulating RNA and exosomal RNA into a flexible elution volume
• High quality, purified RNA is suitable for a variety of downstream applications, including Small RNA Sequencing. Find out more information on Norgen’s NGS services
• Compatible with Streck Cell-Free RNA BCT® Tubes
• Purification is based on spin column chromatography that uses Norgen’s proprietary resin separation matrix

These kits provide a fast, reliable and convenient method to purify and concentrate high quality, high purity and inhibitor-free cell-free circulating and exosomal RNA using a convenient spin column method. These kits can purify RNA from fresh or frozen serum or plasma samples prepared from blood collected on either EDTA or Citrate. Plasma samples prepared from blood collected on heparin should not be used, as heparin can significantly interfere with many downstream applications such as RT-PCR. The purified plasma/serum RNA is fully compatible with all downstream applications including PCR, qPCR, methylation-sensitive reverse transcription qPCR, reverse transcription PCR, Northern blotting, RNase protection and primer extension, expression array assays, and NGS.

Background

Plasma/Serum cell-free circulating RNA or exosomal RNA has the potential to provide biomarkers for certain cancers and disease states. Exosomes are 40 – 150 nm membrane vesicles, which are secreted by most cell types. Exosomes can be found in saliva, blood, urine, amniotic fluid and malignant ascitic fluids, among other biological fluids. Evidence has been accumulating recently that these vesicles act as cellular messengers, conveying information to distant cells and tissues within the body. These exosomes may play a functional role in mediating adaptive immune responses to infectious agents and tumours, tissue repair, neural communication and transfer of pathogenic proteins. For this reason exosomal RNAs may serve as biomarkers for various diseases including cancer. As the RNA molecules encapsulated within exosomes are protected from degradation by RNAses they can be efficiently recovered from biological fluids, such as plasma or serum.

Plasma/Serum RNA Purification Mini Kit

This kit can purify RNA from fresh or frozen serum or plasma samples prepared from blood collected on either EDTA or Citrate, from volumes ranging from 50 µL to 200 µL. The purified plasma/serum RNA is eluted in a flexible final volume of 10 µL to 25 µL.

Plasma/Serum RNA Purification Midi Kit

This utilizes a two column method, and can purify RNA from fresh or frozen serum or plasma samples prepared from blood collected on either EDTA or Citrate, from volumes ranging from 250 µL to 1.5 mL. The first column will handle the large volume input of bodily fluids that is followed by a concentration on a mini column for a final elution of 50 µL to 100 µL.

Plasma/Serum RNA Purification Maxi Kit

This kit can purify RNA from fresh or frozen serum or plasma samples prepared from blood collected on either EDTA or Citrate, from volumes ranging from 2 mL to 5 mL. The first column will handle the large volume input of bodily fluids that is followed by a concentration on a mini column for a final elution of 50 µL to 100 µL.

Isolate RNA after Purifying EVs and Exosomes

For Ultracentrifugation, Exoquick, and Filtration

Cat. #	Name	Elution Volume	Plasma/Serum	Urine	Cell-Culture Media
55000	Plasma/Serum RNA Purification Mini Kit	10 – 25 µL	50 µL – 1 mL	250 µL – 1 mL	5 – 10 mL
35300	Total RNA Purification Micro Kit	20 – 50 µL	1 – 4 mL	2 – 10 mL	10 – 20 mL
17200	Total RNA Purification Kit	50 – 100 µL	4 – 10 mL	11 – 30 mL	20 – 35 mL

Details

Supporting Data

Figure 1 / 13

Previous

Next

Click for expanded view

Kit Specifications
Minimum Plasma/Serum Input	2 mL
Maximum Plasma/Serum Input	5 mL
Size of DNA Purified	All sizes, including miRNA and small RNA (<200 nt)
Elution Volume	50-100 μL
Time to Complete 10 Purifications	35-40 minutes
Average Yields*	Variable depending on specimen

*Please check page 7 of the Product Insert for Average Plasma/Serum Yields and Common RNA Quantification Methods.

This kit is suitable for the isolation of RNA from fresh or frozen serum or plasma prepared from blood collected on either EDTA or Citrate. Plasma samples prepared from blood collected on heparin should not be used as heparin can significantly interfere with many downstream applications such as RT-PCR.


Storage Conditions and Product Stability
All solutions should be kept tightly sealed and stored at room temperature. This kit is stable for 2 years after the date of shipment. It is recommended to warm Lysis Buffer A for 20 minutes at 60°C if any salt precipitation is observed.

Kit Components	Cat. 55000 (50 preps)	Cat. 56100 (20 preps)	Cat. 56200 (10 preps)
Lysis Buffer A	2 x 20 mL	100 mL	1 x 130 mL 1 x 30 mL
Wash Solution A	18 mL	1 x 38 mL 1 x 18 mL	38 mL
Elution Solution A	6 mL	6 mL	6 mL
Elution Buffer F	–	15 mL	15 mL
Micro Spin Columns	50	–	–
Mini Spin Columns	–	20	10
Midi Spin Columns	–	20	–
Maxi Spin Columns	–	–	10
Collection Tubes	50	20	10
Elution Tubes (1.7 mL)	50	20	10
Product Insert	1	1	1
